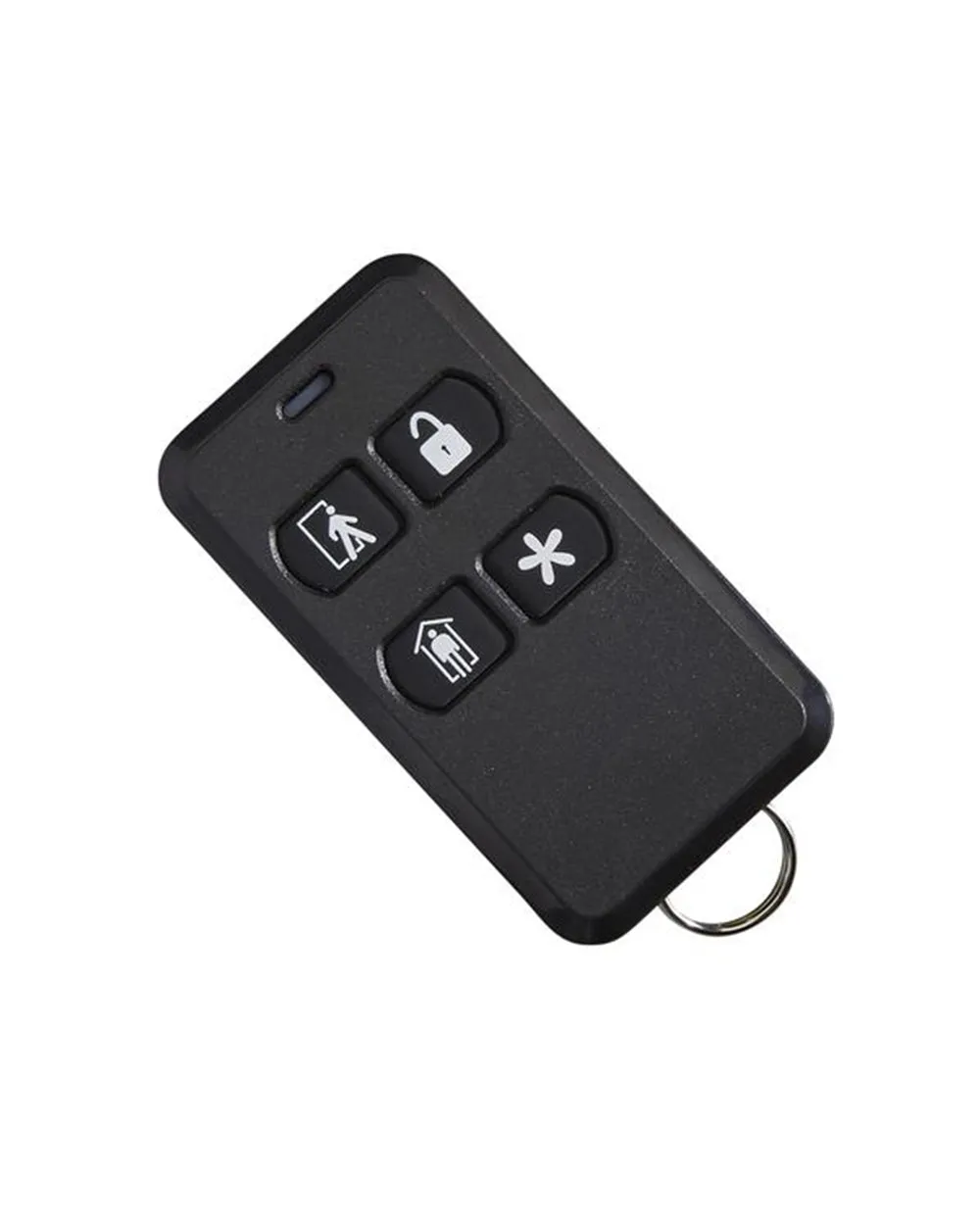

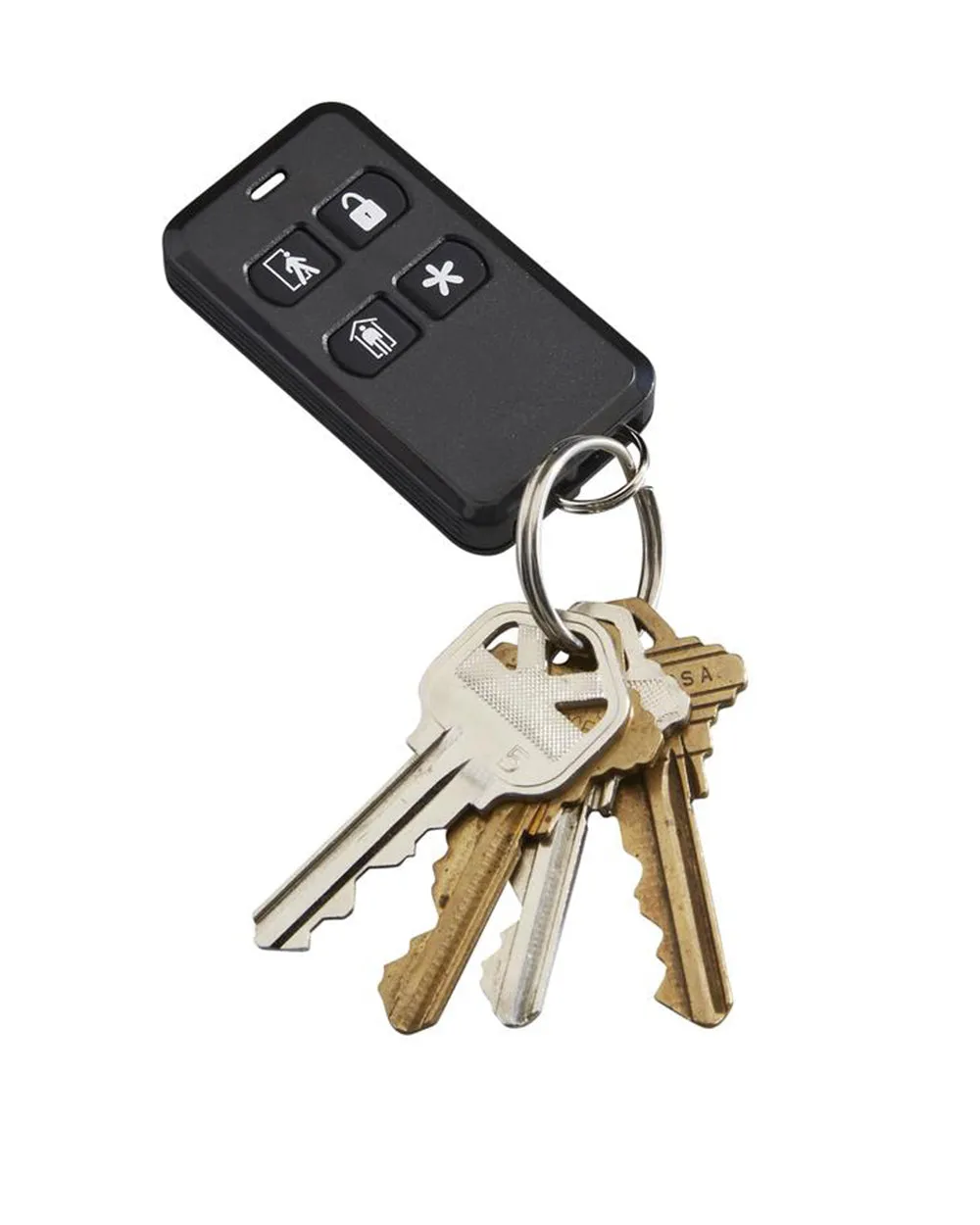

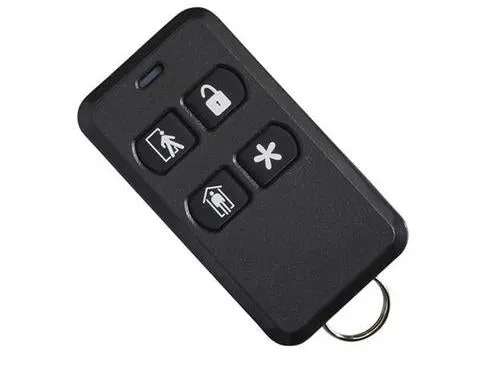

Easily arm and disarm system. In an emergency, turn on the siren and automatically call the monitoring center.

[tabs]

[1][Features]

• Arms system in STAY or AWAY mode
• Disarms system
• Auxiliary output and emergency functions
• Lithium coin battery with 5 years life

[2][Specifications]

Wireless Signal Range : 350 ft (106.7 m), open air, with Wireless Control Panel
Code Outputs : Arm; Disarm; Panic; Relay Control
Transmitter Frequency : 345.00 MHz (crystal controlled)
Unique ID Codes : Over one (1) million different code combinations
Supervisory Interval : 70 minutes
Dimensions (L x W x H) : 1.23 x 2.26 x 0.45 in (3.12 x 5.74 x 1.14 cm) typical
Weight (including battery) : 0.65 oz (18.4 g)
Housing Material : ABS Plastic
Color : Black
Operating Temperature : 32°‐120° F (0°‐49° C)
Relative Humidity : 5‐90% Non‐Condensing
Battery (installed) : One (1) CR 2025 3V or equivalent Lithium coin
